Proudly Made in the USA Wire & Cable Handling Equipment
Graham International manufactures the full range of equipment for wire and cable handling operations — from reel takeup and payout machines to racking systems, coiling equipment, measuring devices, and more. Every product is made in the USA with wearproof materials and backed by our industry-best warranty.
Featured & New Equipment
The H6T20-STM Shaftless Take-Up Machine, followed by a selection of equipment from across our lineup.
Reel Takeup / Rewind Machines
Heavy-duty reel winding machines from 3,000 to 40,000 lb capacity. Wearproof axle saddles standard on shafted models.
H10T Series Reel Takeup Machines
10,000 lb. lift capacity reel takeup machines with 6,000 to 40,000 lb. pulling range.
H8T Series Reel Takeup Machines
8,000 lb. lift capacity reel takeup machines with 6,000 to 40,000 lb. pulling range.
H6T Series Reel Takeup Machines
6,000 lb. lift capacity reel takeup machines with 6,000 to 40,000 lb. pulling range.
H6T20-MS Manual Shaftless Takeup Machine
Manual shaftless reel takeup machine with 20,000 lb. pulling capacity.
H3T Series Reel Takeup Machines
4,000 lb. lift capacity reel takeup machines with 6,000 to 20,000 lb. pulling range.
H4TM Reel Takeup Machine
Push-button hydraulic lift takeup machine with 4,000 lb. lift and pull capacity.

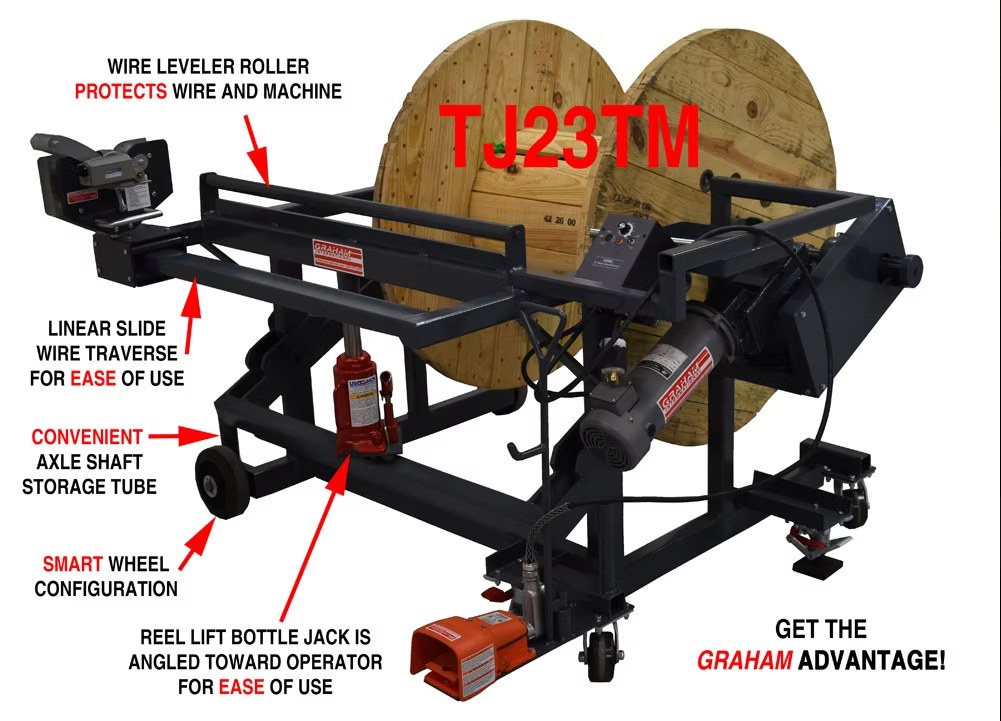

TJ23TM Reel Takeup Machine
Hydraulic jack lift takeup machine with 4,000 lb. lift and 4,000 lb. pull capacity.

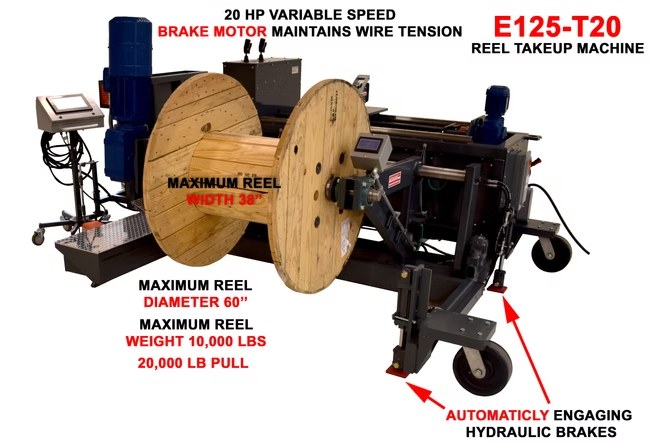

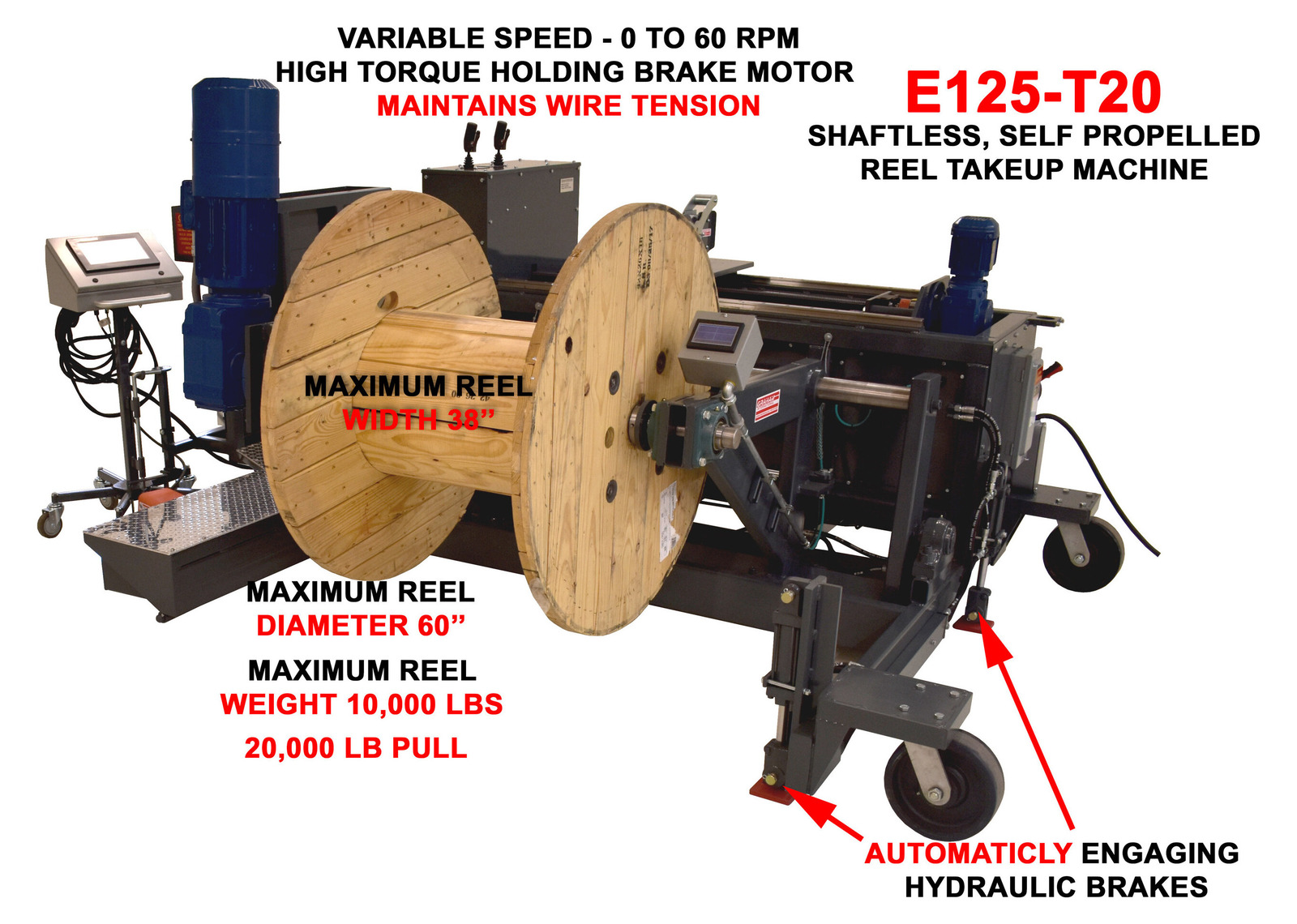

Model E125T20 Shaftless Automated Self-Propelled Takeup
Shaftless, HMI-controlled, self-propelled takeup with 20,000 lb. pulling capacity.
CJ2TM Reel Takeup Machine
Hydraulic jack lift takeup machine with 2,500 lb. lift and 4,000 lb. pull capacity.
Reel Payout Machines & Equipment
Cable payout machines for reels from 2,500 to 20,000 lb. Push-button hydraulic lift on select models, in shafted and shaftless configurations.
H15P Reel Payout Machine
Push-button hydraulic payout machine with 15,000 lb. lift capacity for the largest reels.
H20SP Shaftless Payout
Hydraulic shaftless reel payout machine — 20,000 lb. lift, 96" diameter x 60" wide capacity.
H10P Reel Payout Machine
Push-button hydraulic payout machine with 10,000 lb. lift capacity.
H8P Reel Payout Machine
Push-button hydraulic payout machine with 8,000 lb. lift capacity.
H6P Reel Payout Machine
Push-button hydraulic payout machine with 6,000 lb. lift capacity.
TJ23P Payout Machine
Hydraulic jack lift payout machine with 4,000 lb. capacity for reels up to 60" diameter.
CJ2P A-Frame Payout Machine
A-frame payout with hydraulic jack lift for 2,500 lb. reels up to 54" diameter.
5059 Step Lift / Tip-Up Payout Cart
Tip-up payout cart with adjustable axle brackets for most reel diameters.

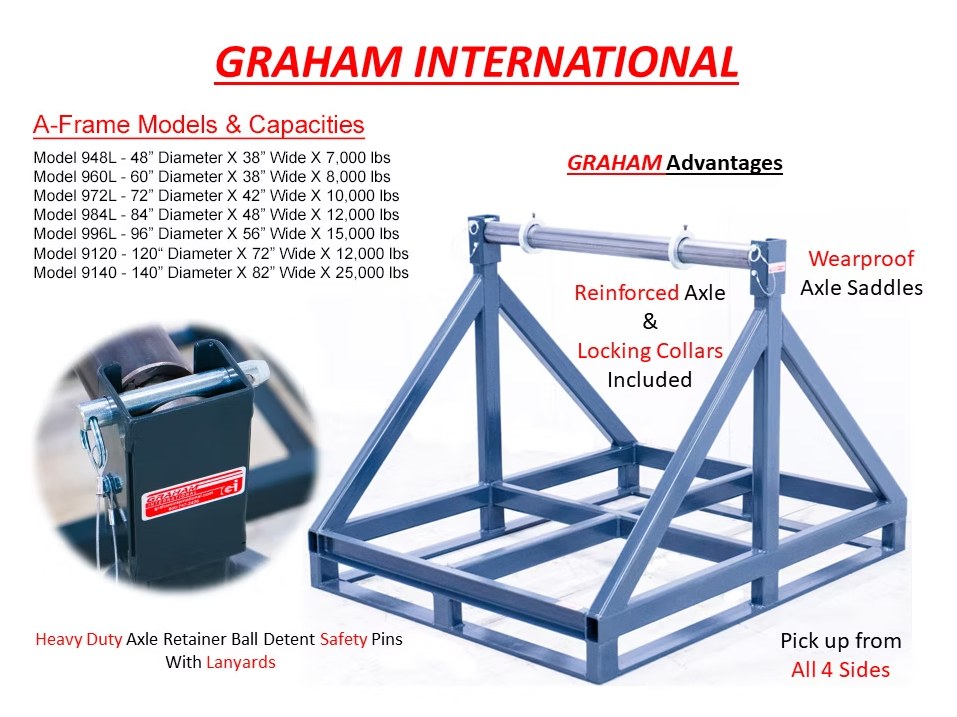

A-Frame Payouts
A-frame payout machines loadable from any side with pallet jack or forklift.
Floor Rollers
Adjustable floor rollers with precision ball bearings for smooth, quiet operation.
Turntable Payouts
Heavy-duty turntables and stands for remnant coils and broken reels.
Coiling / Spooling Machines and Equipment
Wire coiling machines from manual pull to variable speed AC drive models up to 300 RPM, plus coil carts and storage racks. Measuring devices included on select models.

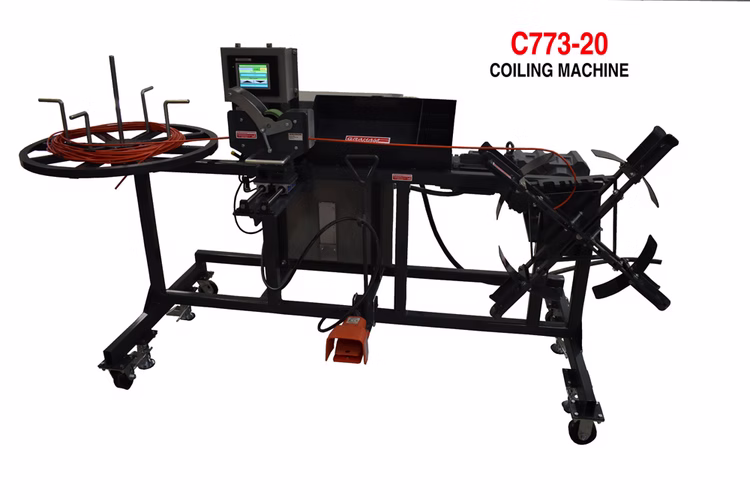

C773 Series Heavy Duty Hydraulic Coiling Machines
5 HP hydraulic coiling machines with turntable, pulling from 5,000 lb. reels at 0-60 RPM.
C73 Series Powered Coiling Machines with Turntable
1 HP powered coiling machines with 31" turntable and M200WD measuring device.
C70 Series Powered Coiling Machines
1 HP powered coiling machines with M200 measuring device included.
C69 Series Manual Coiling Machines with Turntable
Manual coiling machines with 31" turntable and M100 measuring device.
C68 Series Manual Coiling Machines
Manual coiling machines with M100 measuring device — simple, durable, and ready to work.
CS Series Mobile Coiling Cart
Efficient, heavy-duty mobile coiling cart that maneuvers like a hand truck.
Bench Mounted Coiling / Measuring
Space-efficient bench-mounted configuration for wire measuring and coiling equipment.

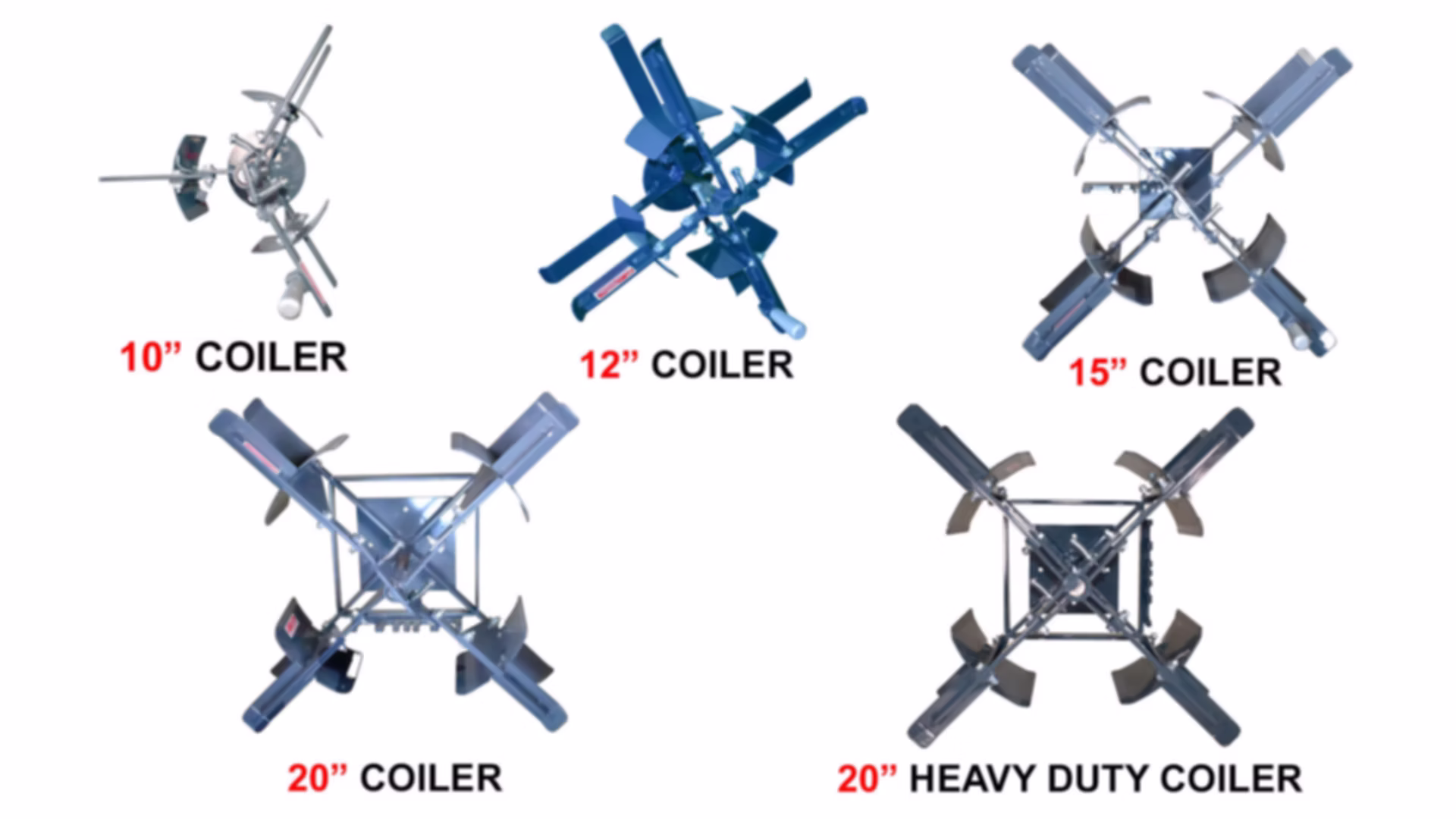

Collapsible Coilers
Heavy-duty commercial grade collapsible coilers in 10" to 20" HD sizes.

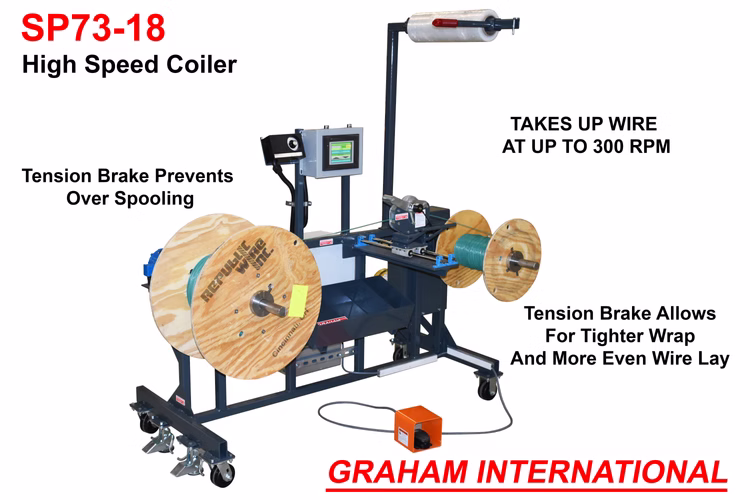

SP73-18 High Speed Coiling Machine
Variable-speed AC drive high-speed coiling machine running up to 300 RPM.

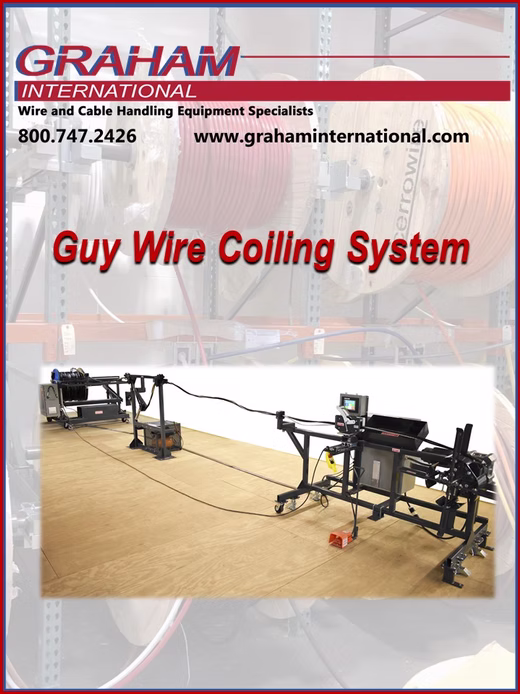

Guy Wire Coiling System
Automated coiling system with dancer-controlled payout for wire rope and guy wire.
HSP11-15C High Speed Coiling & Spooling Machine
High speed coiling and spooling machine with quick-mount 15" collapsible coiler.
Coil Hanger Cart
Heavy-duty mobile coil cart for wire and cable that maneuvers like a hand truck.
MRR65 Mobile Spool Rack
Mobile racking system with multiple axle shafts for moving small spools.
Remnant Coil Storage Rack
Racking system with movable hooks for storing leftover wire from payoff reels.
Paralleling Reels
Multi-cable paralleling reels in 1, 3, 4, and 5 compartment configurations. Heavy construction for contractor use.
Reel Racking Systems
Durable wire and cable reel racking with wearproof inserts on our SD, IR, TR and Center Hung systems. Capacities up to 10,000 lbs.
Coil Hanger Cart
Heavy-duty mobile coil cart for wire and cable that maneuvers like a hand truck.
MRR65 Mobile Spool Rack
Mobile racking system with multiple axle shafts for moving small spools.
Remnant Coil Storage Rack
Racking system with movable hooks for storing leftover wire from payoff reels.
TR Double Depth Reel Rack 5,000 LB.
Track and trolley double depth racking with 5,000 lb. per reel capacity.

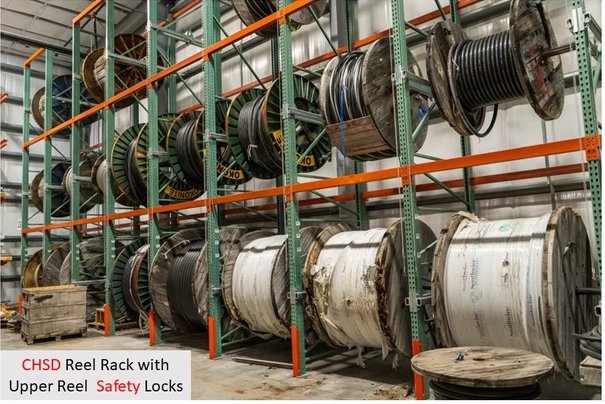

CHSD Single Depth Center Hung Reel Rack 10,000 LB.
Center-hung racking for heavy reels up to 10,000 lb. with equal weight distribution.

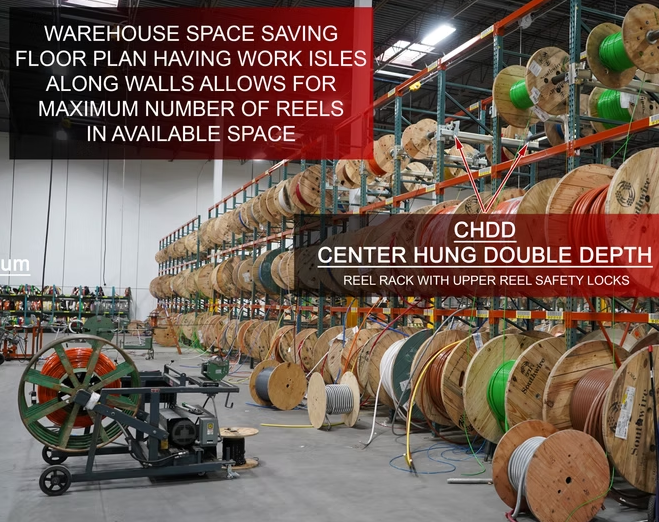

Center Hung Double Depth Reel Rack
Center-hung double depth racking up to 10,000 lbs. per reel with wearproof inserts and quiet operation.
SD Reel Rack 3,500 LB.
Single depth reel racking with up to 3,500 lbs. per reel capacity and wearproof inserts.
IR Reel Rack 3,500 LB.
Double depth island racking loadable from both sides with 3,500 lbs. per reel capacity.
MECO Light Duty Reel Rack
Light-duty reel rack for reels up to 2,000 lbs. Free standing, no wall support necessary.
Reel Loading Devices
CR42 Reel Loading Cradle and RL-42 Reel Loader — safely load reels into racking without damaging contents.

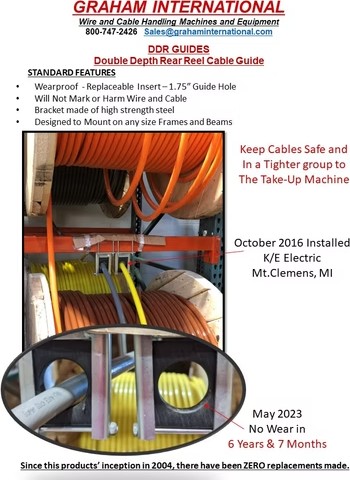

Wire Guides for Racking
DDR wire guides with wearproof 1.75" guide hole — keeps cables safe and in a tighter group to the takeup machine.
Reel Rack Parts
Replacement parts for all Graham International reel racking systems.
Reel Storage Cradle
Upright reel storage designed for existing pallet racking systems.
Wire Measuring Devices
Precision wire and cable measuring devices from 1" to 4" capacity. Wireless digital option available.
M400 Measuring Device (4" Capacity)
Heavy-duty precision measuring device for wire and cable up to 4" diameter.
M300 Measuring Device (3" Capacity)
Heavy-duty precision measuring device for wire and cable up to 3" diameter.
M200 / M200WD Measuring Device (2" Capacity)
Heavy-duty precision measuring device for wire and cable up to 2" diameter.
M100 Measuring Device (1" Capacity)
Heavy-duty precision measuring device for wire and cable up to 1" diameter.
Model 5097 Measuring Device Stands
Adjustable height, floor-mountable stands built to specifications for wire measuring devices.
Shaftless Machines
Shaftless machines for oversized reels — takeup, payout, and extrusion reeling systems. No shaft threading required.
Model H6T20-STM Shaftless Take-Up Machine
Shaftless take-up machine with a wheeled Mobile Operator Station and 6,000 to 40,000 lb. pulling configurations.

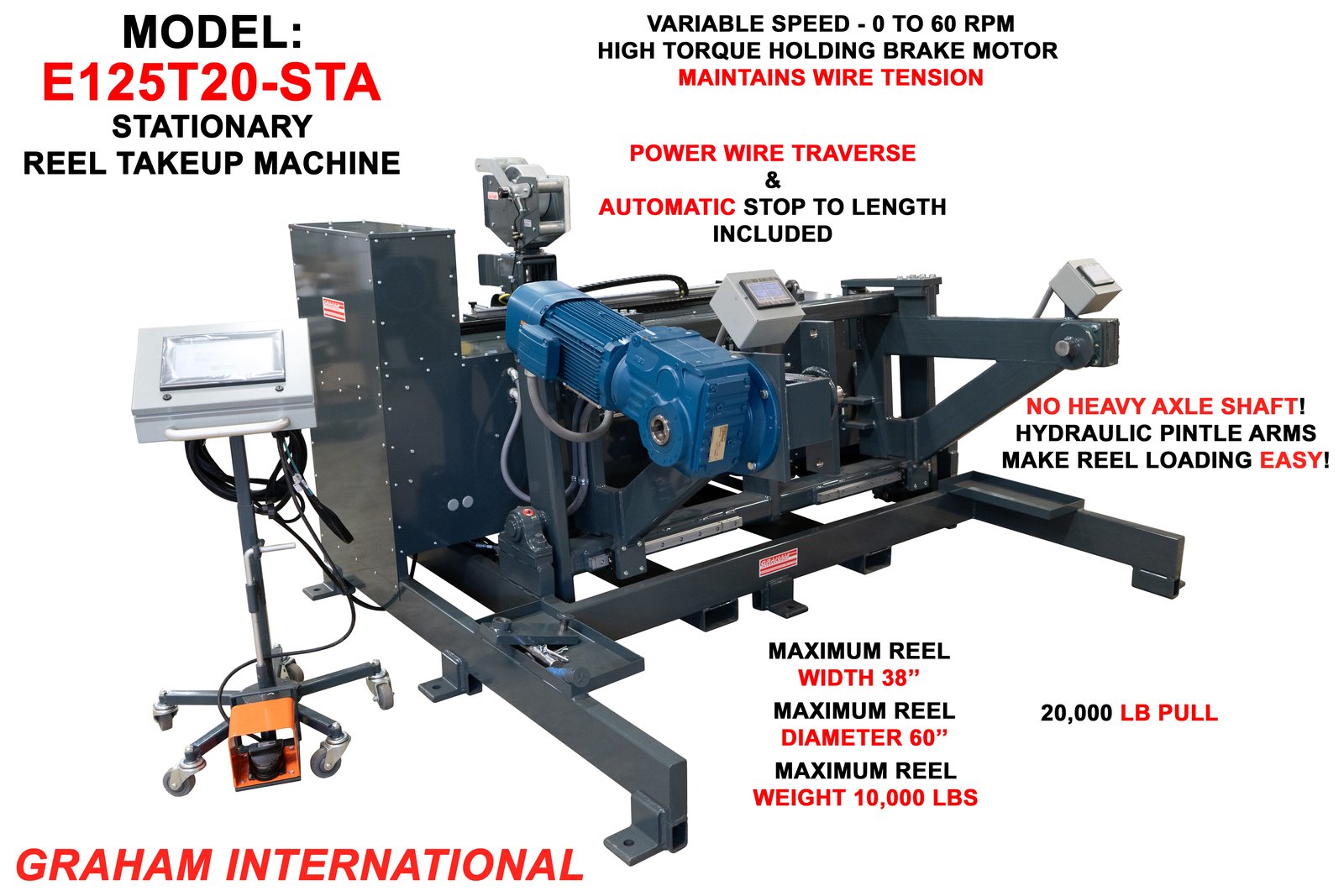

Model E125T20-STA Shaftless Automated Stationary Takeup
Floor-mounted shaftless automated takeup with 20,000 lb. pull, HMI control, and a mobile operator station.
Automatic Extrusion Reeling System
Automated reeling system with dancer-controlled line tensioner for extruded material.
H20SP Shaftless Payout
Hydraulic shaftless reel payout machine — 20,000 lb. lift, 96" diameter x 60" wide capacity.
Conduit Racking & Equipment
Conduit racking and bundle carts. Organize your warehouse efficiently.
Need Help Choosing the Right Equipment?
Tell us about your operation — reel sizes, wire types, throughput needs — and we'll recommend the right solution. We can also design your entire wire room layout.
