Name: A-Frame Payouts
Brand: Graham International
Availability: InStock

About This Equipment

Graham International A-Frame Payouts are made to be picked from any side with a pallet jack or forklift for ease of loading at the warehouse and unloading at the job site. Featuring wearproof axle saddles and locking axle shaft retainers, these payouts deliver safe, reliable wire and cable dispensing. Shaftless and automated options are available. Built in the USA with heavy-duty tubular steel frames.

Available Models

Model	Configuration

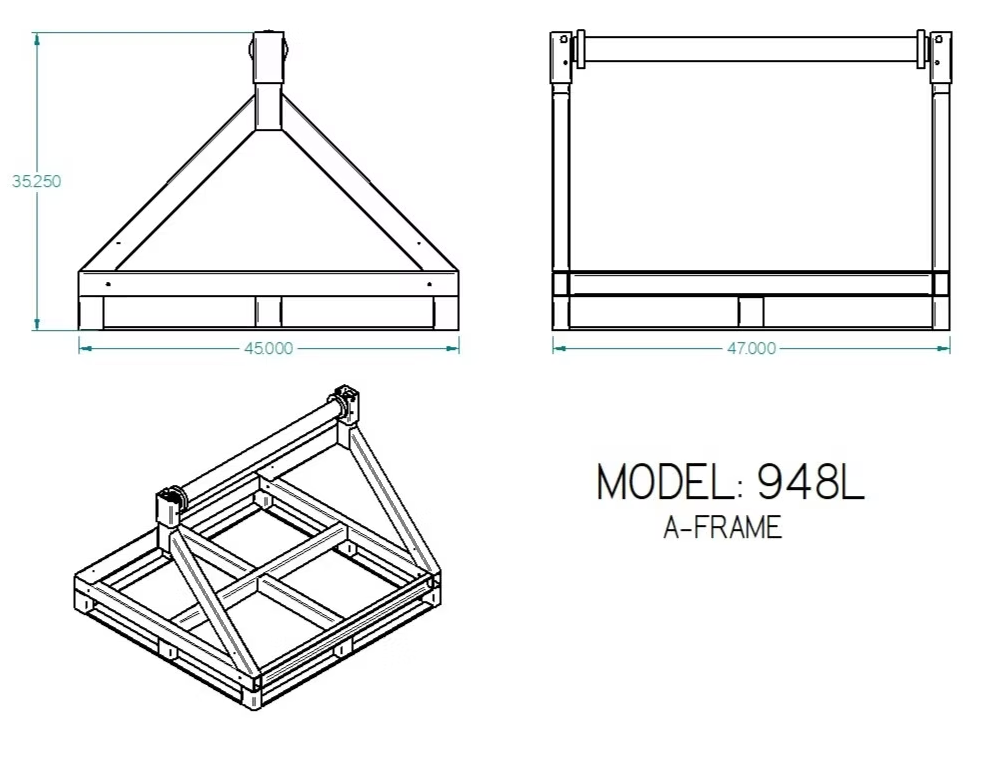

948L	48" Dia x 36" Wide x 7,000 lbs.

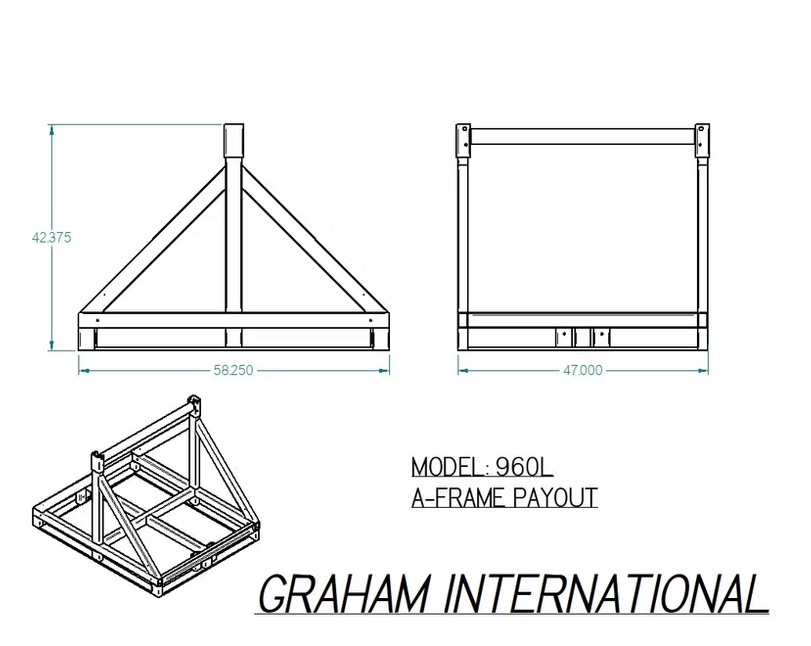

960L	60" Dia x 38" Wide x 8,000 lbs.

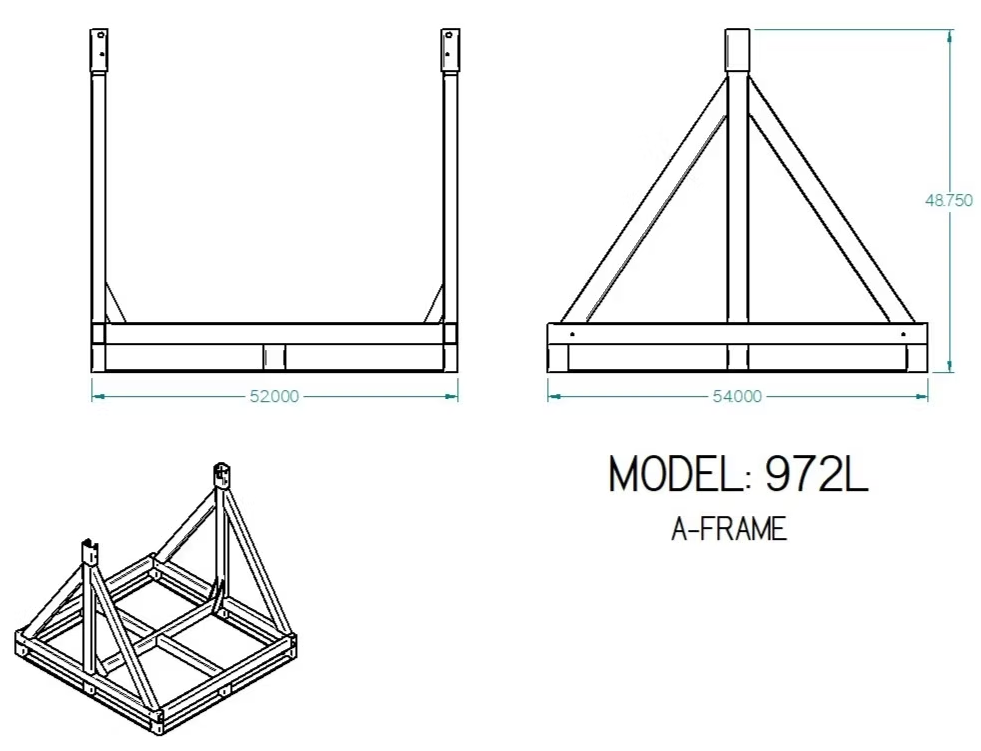

972L	72" Dia x 42" Wide x 8,000 lbs.

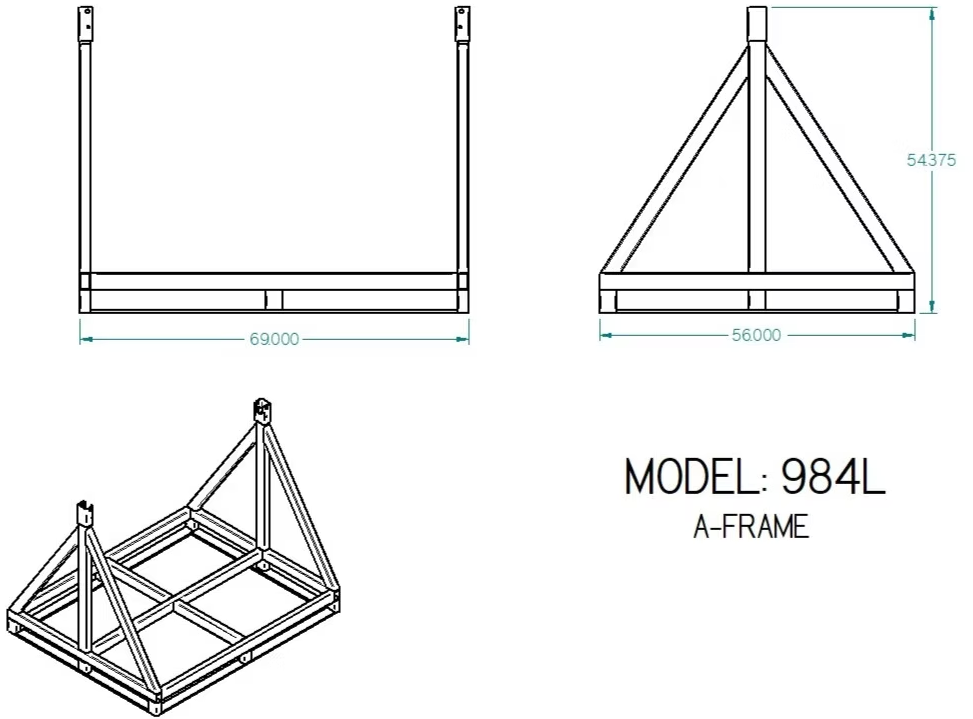

984L	84" Dia x 48" Wide x 12,000 lbs.

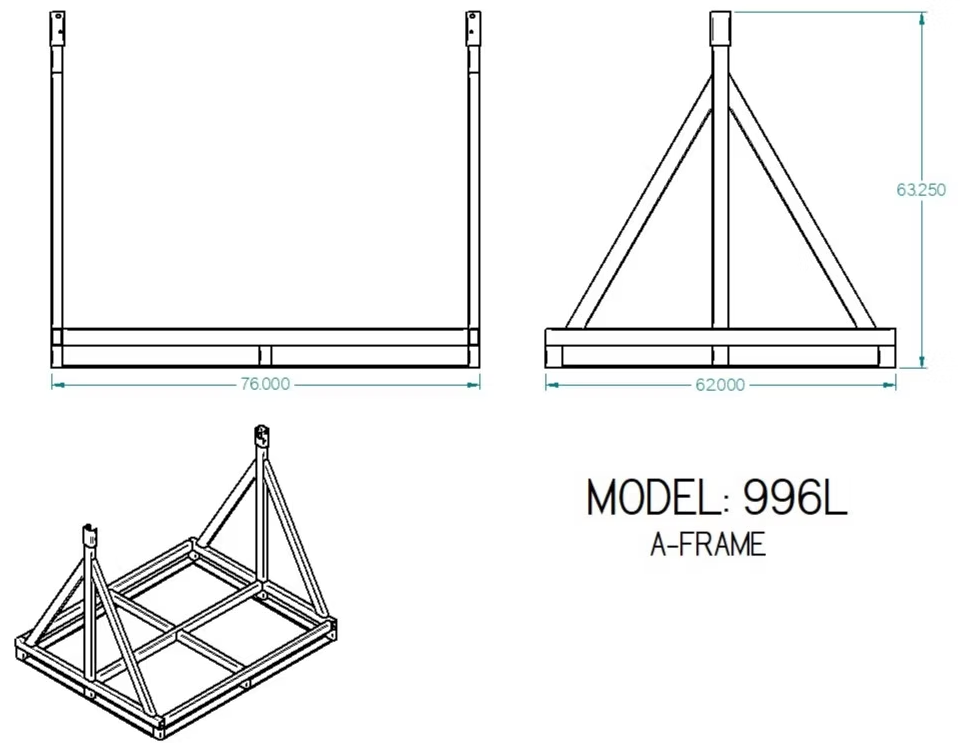

996	96" Dia x 56" Wide x 15,000 lbs.

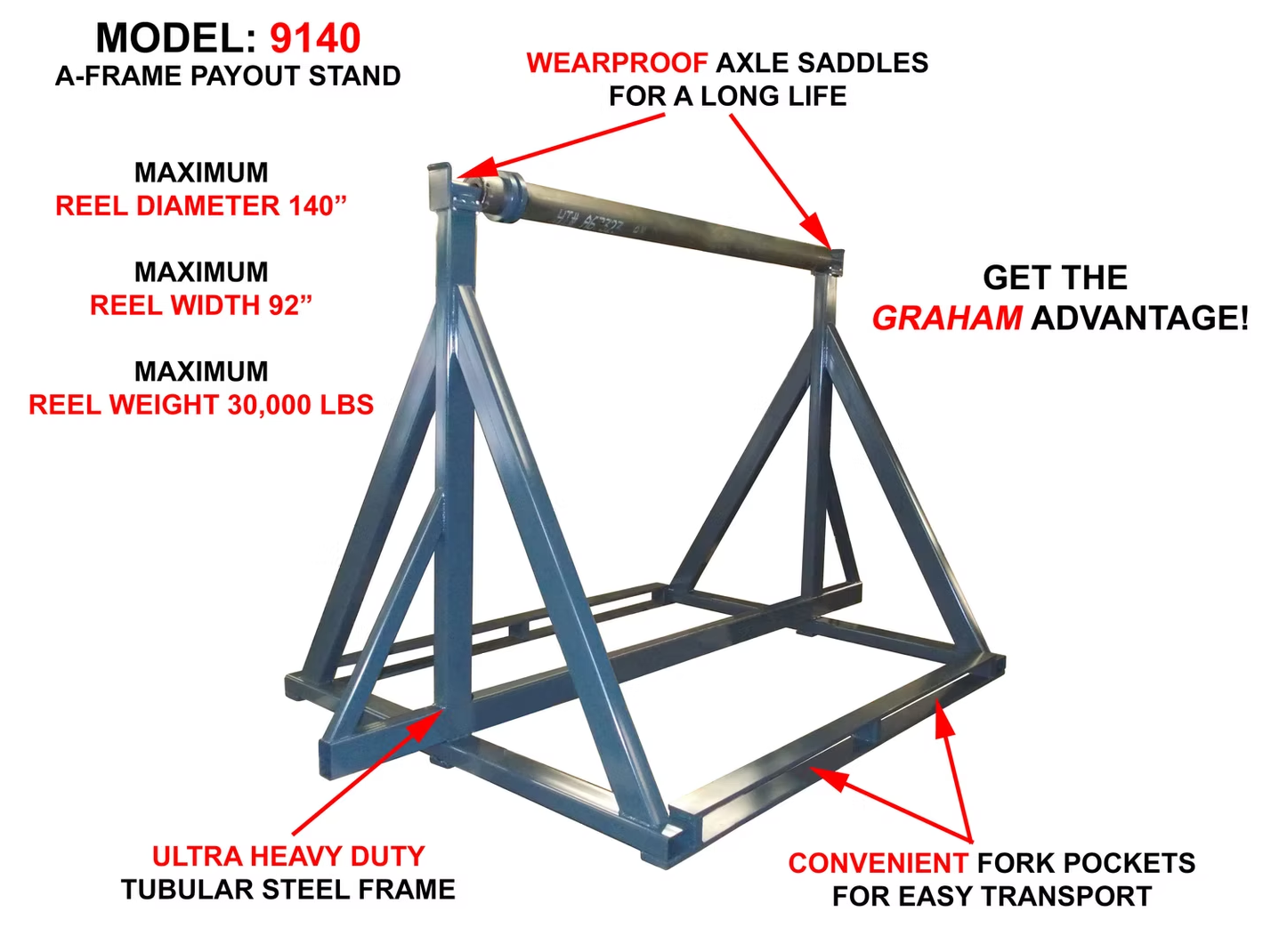

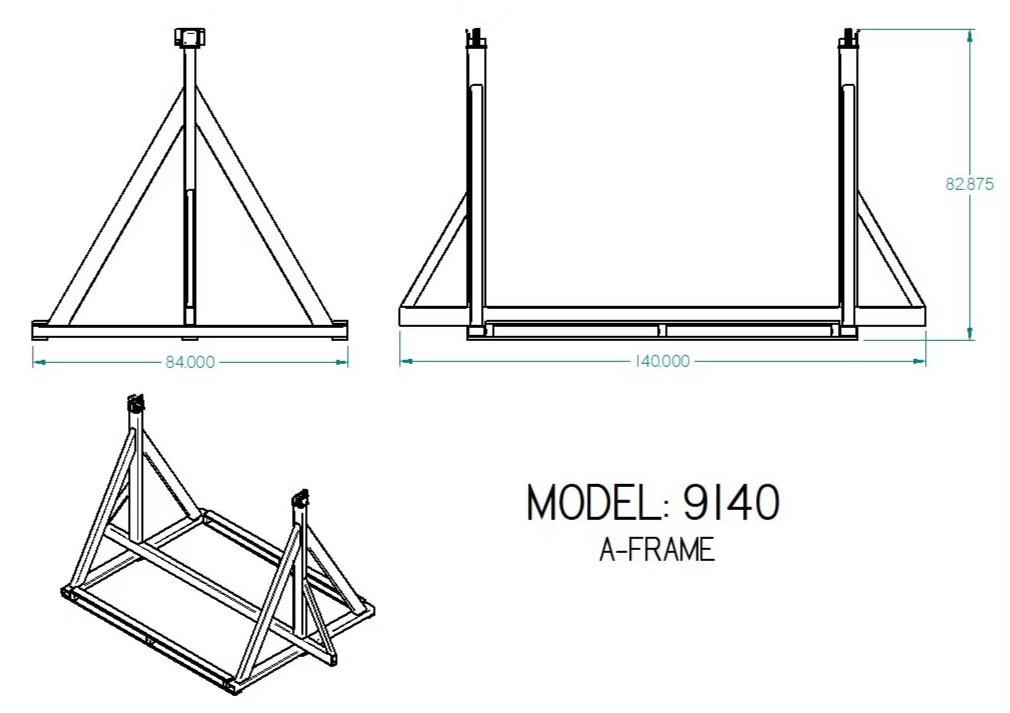

9140	140" Dia x 92" Wide x 25,000 lbs.

Standard Features

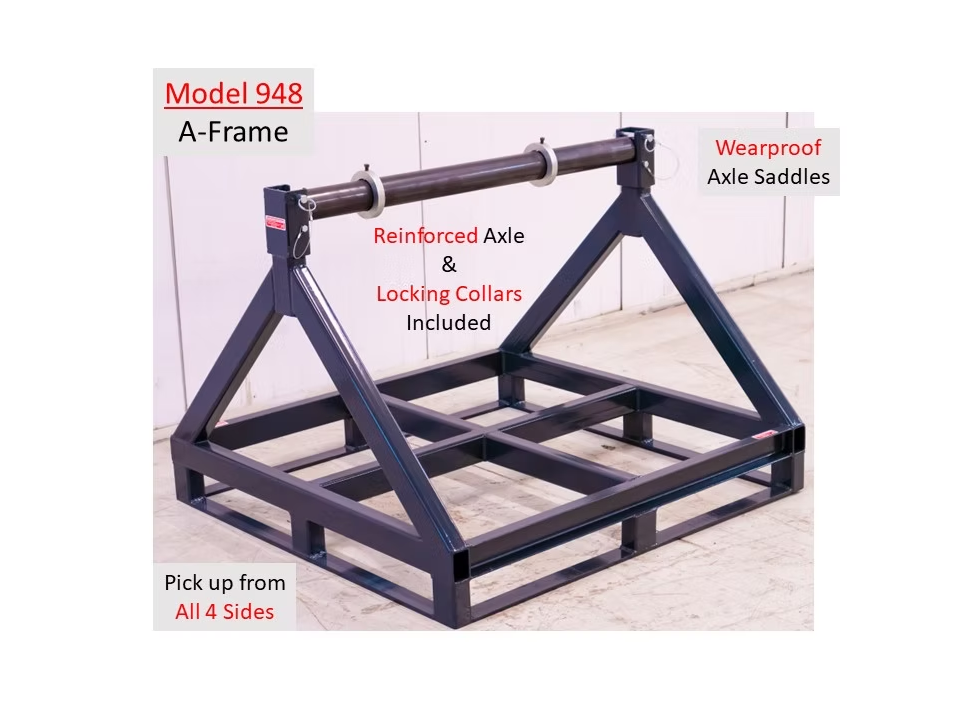

A-frame design — loadable from any side
Wearproof axle saddles

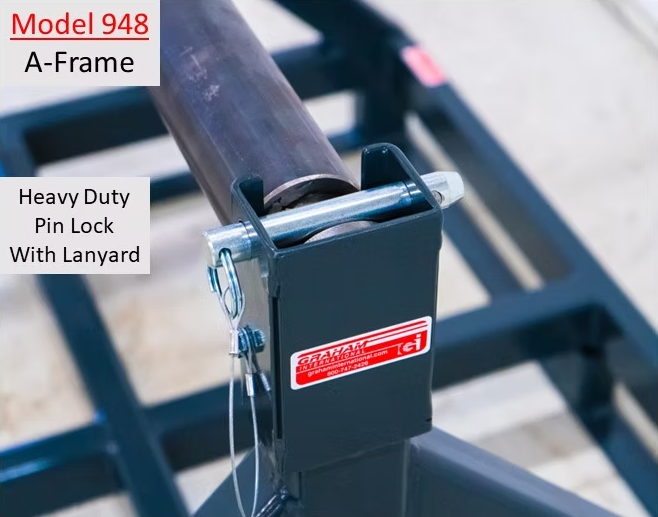

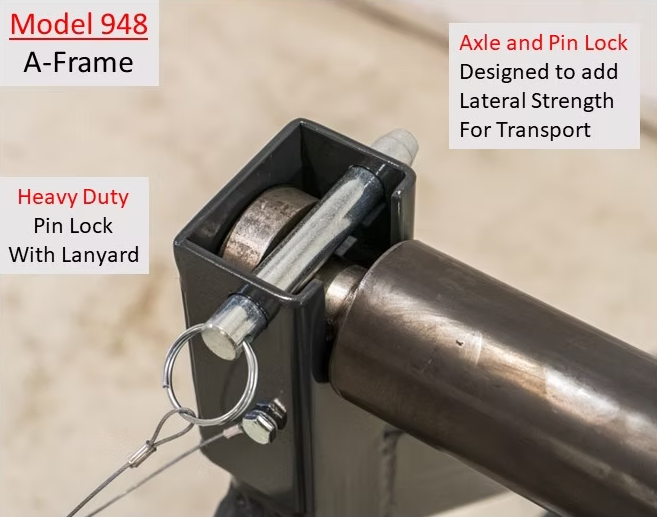

Locking axle shaft retainers
Shaftless and automated options available
Heavy-duty tubular steel frame construction

Available Options

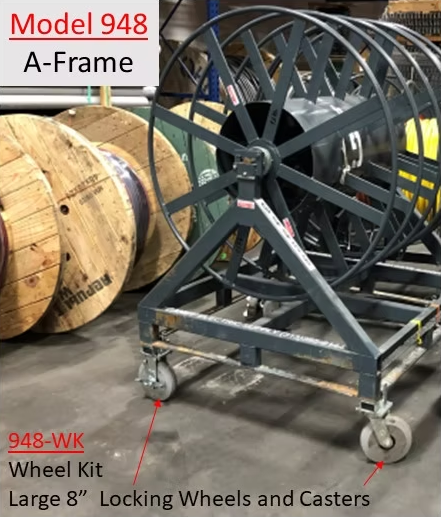

Removable Swivel Casters with Storage
Power Assist

Industry-Best Warranty

Every piece of Graham International equipment is backed by our industry-leading warranty.

2-Year Component Warranty Graham International warrants all units and equipment against defects in material and workmanship under normal use and service for 24 months from Invoice Date, including manufacturers components with shorter warranties.

5-Year Craftsmanship Warranty All Graham International equipment carries a 5-year warranty against defects in workmanship. When we say our equipment is built to last, we put the warranty behind it.

Full Warranty Details
